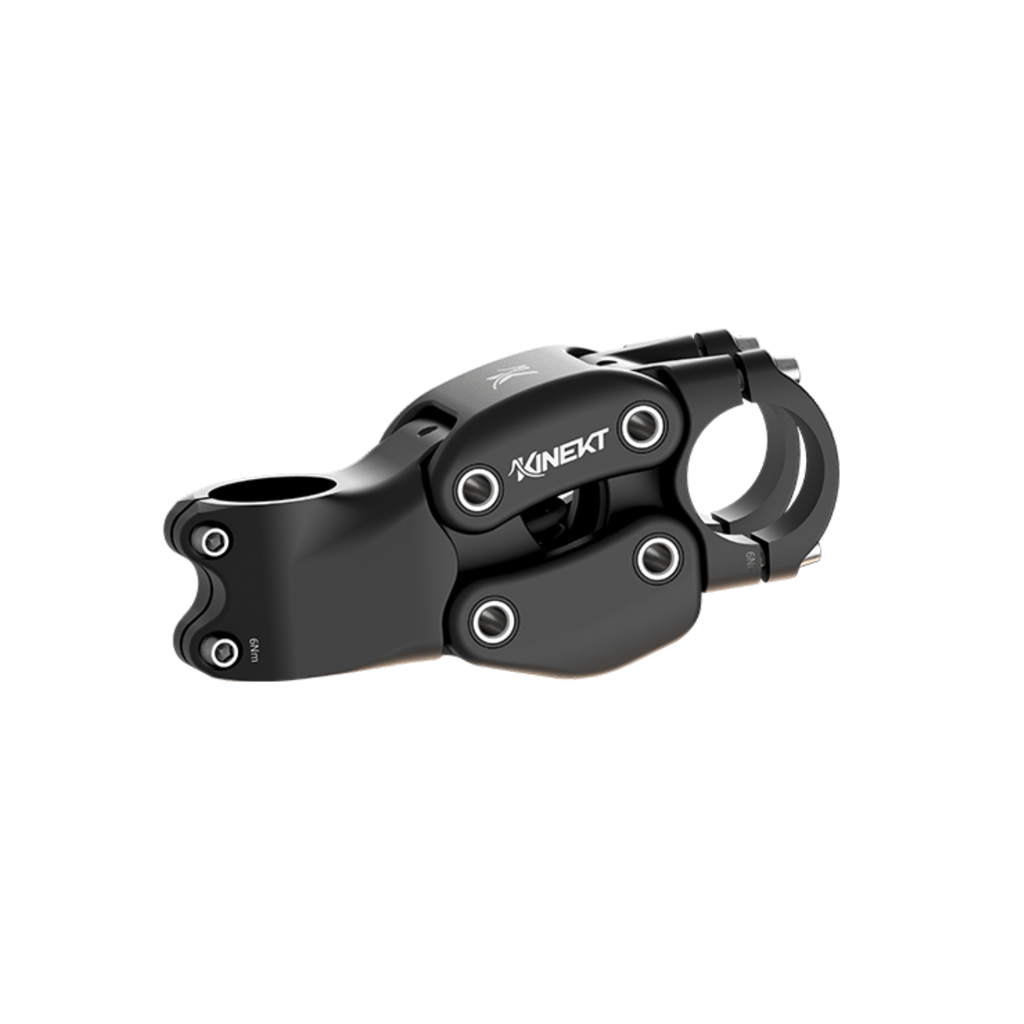

Kinekt Stem Suspension

The Kinekt is a stem suspension unlike anything you've seen before. The proven and patented Kinekt isolation system from Cirrus Cycles, which was already a huge success in the Kinekt seat post, is used in this stem suspension.

The result: effective and reliable isolation from shocks and vibrations on a wide variety of terrains. This protects your upper body and is easy on your joints and shoulders. The riding experience is incredibly good!

The special thing about this unique suspension technology is that it moves up and down, but your riding position remains unchanged due to the geometry of the stem. This gives you more freedom and fun while riding.

Of course, it is also adjustable, compact, and durable. The ultimate upgrade for your bike.

• Patented isolation system

• Effective isolation of shocks and vibrations


• Protects your arms, wrists, and shoulders


• More comfort and a more relaxed ride


• Consistent riding position (even during heavy braking)

• Does not alter control over your handlebars


• Lighter than a conventional suspension fork

• Easy to install

• 3 pairs of springs for optimal adaptation to terrain and riding style


• Easy to adjust and change


• Maintenance-free

• Durable and robust

If you enjoy riding a bike or e-bike, the answer is yes! Whether you are a recreational cyclist, commuter, mountain biker, road cyclist, or touring cyclist, whether you are an organic cyclist with a normal bike or an e-bike rider, this bike is advantageous for many uses.

The Kinekt stem suspension is the perfect addition to a wide variety of bike types. After all, Kinekt makes the riding experience more comfortable for everyone, so you'll want to get on your bike more often.

The Kinekt stem suspension is designed to fit virtually any type of handlebar, such as road bike, MTB, BMX, or city cruiser handlebars. Whether wide, narrow, upswept, or backswept, riser, or foldable, the Kinekt stem suspension will fit.


It also doesn't matter where you hold the handlebars. The suspension travel and riding experience are not affected. The perfect conditions for feeling comfortable in the saddle on a wide variety of routes.

Important: Please note the information below regarding size selection.

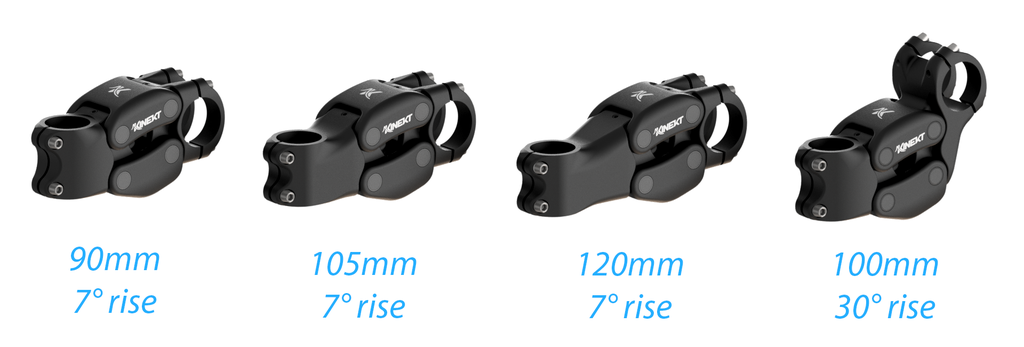

The Kinekt stem suspension is available in 4 sizes.

• 90mm x 7 degrees (low angle), 470g

• 100 mm x 30 degrees (high angle), 500 g

• 105 mm x 7 degrees (low angle), 500 g


• 120 mm x 7 degrees (low angle), 530 g


• 90 mm x 7 degrees (high angle)

The spring range for all sizes is 15-20mm.Please note that the weight can vary by +/- 30g. The diameter of the headset is 11/8 inch.

The Kinekt stem suspension is an Ahead stem. This is placed over the steerer tube and has an external clamp.

• Suitable for a threadless Ahead headset.


• For a classic threaded headset (quill), you will need an Ahead adapter.


Choose a Kinekt stem length that is closest to the current length of your stem. To measure the length, take the distance from the center of the handlebar to the center of the top tube.

Kinekt stems are available in lengths of 90 mm, 105 mm, and 120 mm with a 7-degree angle, and in a length of 100 mm with a 30-degree angle.

The Kinekt stem suspension is designed for handlebars with a diameter of 31.8 mm at the stem. Please note that shims may be required for installation if your handlebar tube has a diameter smaller than 31.8 mm at the stem.

The Kinekt front suspension is available in two different gradients, 7 and 30 degrees.

• 7 degrees: for a sporty riding position, for example on a road bike or mountain bike.

• 30 degrees: for a more upright, relaxed riding position, for example for e-bikes such as the YouMo eCruiser.

The scope of delivery includes:

• 1x Kinekt stem suspension


• 3x pairs of springs in soft, medium, and hard (medium is installed)


• 3x tuning discs

The following additional items and accessories from Kinekt may be helpful:

Use the damper for firmer suspension and a tighter ride without sacrificing the comfort of the Kinekt suspension system. Suitable for all Kinekt stem suspensions. Easy to install.

Is your bike a bit older and has handlebars narrower than 31.8 mm? With these spacer washers, you can use the Kinekt stem suspension with your existing handlebars. The Kinekt stem is designed for handlebars with a diameter of 31.8 mm. Use these spacer washers for handlebars with a diameter of 25.4 mm or more.

This light mount is specially designed for front lights that are mounted with a 10 mm wide clamp and a 6 mm wide screw. Also suitable for many e-bike and dynamo lights.

Please note that bike computers, GoPros, and rechargeable bike lights are not compatible.

Did you know that Kinekt's suspension seat post was named the test winner by the German magazine RADtouren?

With a score of 1.2, the seat post with its patented insulation system took the title of test winner.

Good conditions for the Kinekt stem suspension, right?
