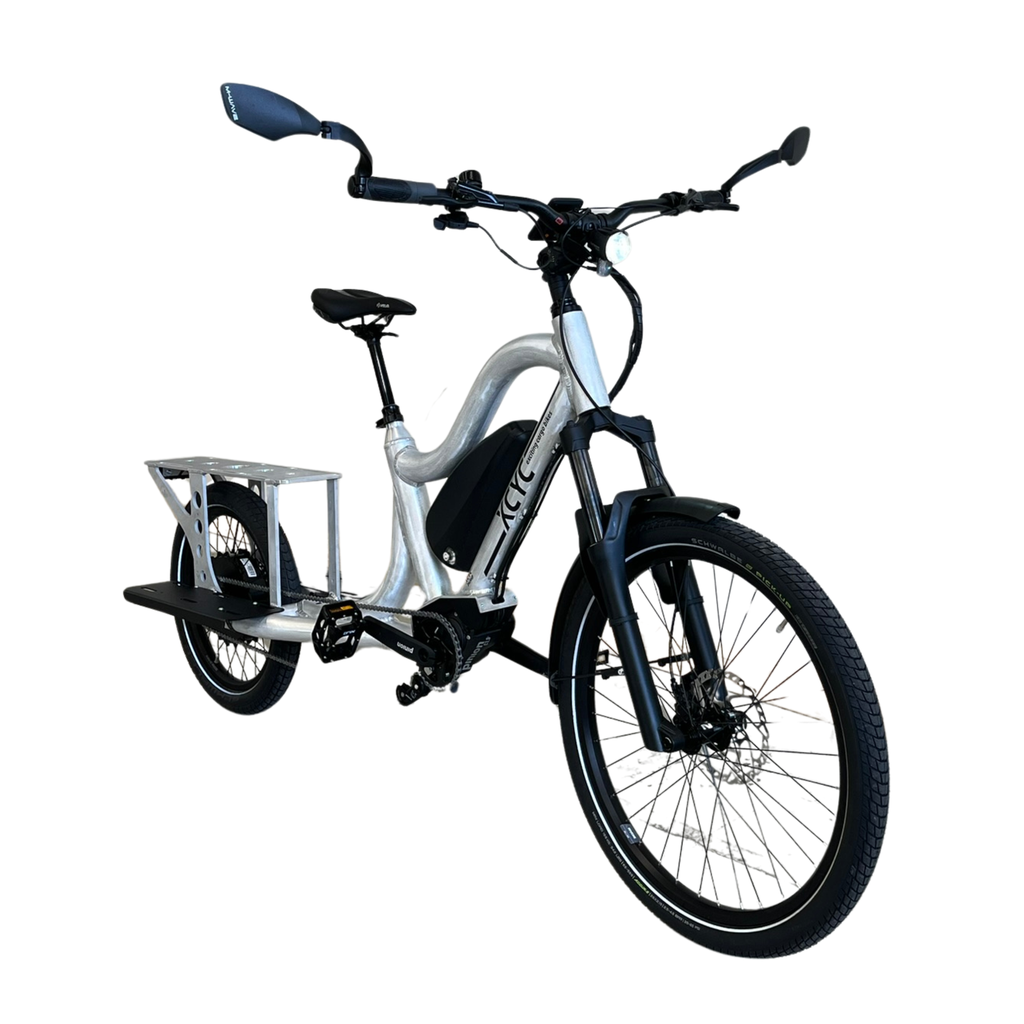

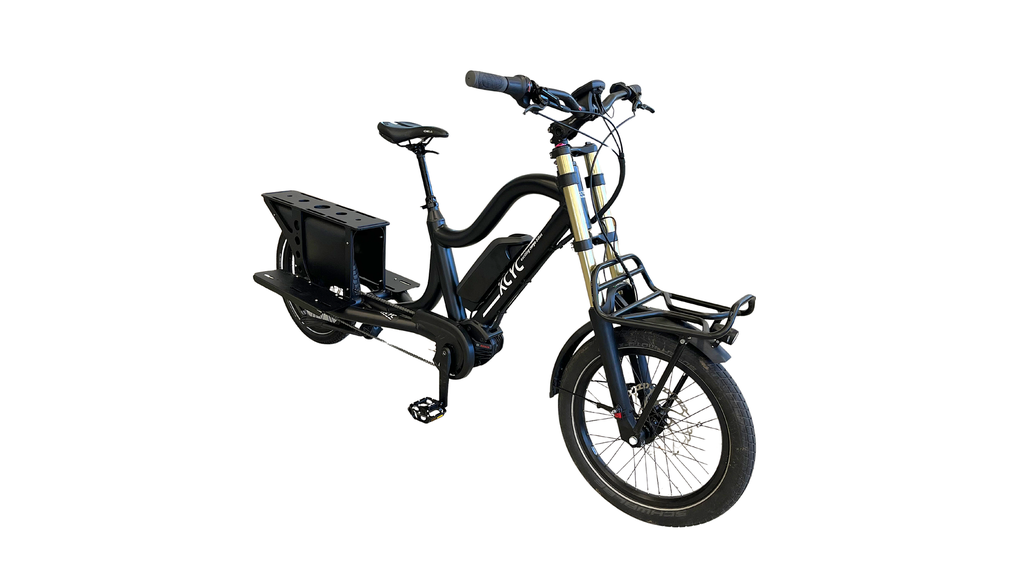

XCYC Pickup Longtail 5.0 Rohloff T
Standard configuration:
2270 x 850 x 1150 mm (L x W x H)
Drive unit: Bosch Performance CX Drive Unit Gen. 4
Cargo Line, 250 W, 85 Nm
Bosch Performance Line Battery 500 Wh, removable
Rohloff Speedhub hub-gear system, 14 gears
Brakes: Tektro Auriga
Cargo-Bike premium double-crown suspension fork
Front wheel: rim 26 inches, tire 26x2,15 Schwalbe Pick-Up
Rear wheels: Rim 20 inches
Handlebar width: 780mm & Steering damper
Light package (front light, back light and reflectors)
Fixed seatpost
Standard paint black finish, matt
Size of loading area LA03
850 x 748 mm (L x W) (Phenolic plywood)
| Structure: ohne Aufbau |
Mobility in motion: built to work with you
Comfort meets efficiency
With the XCYC LONGTAIL 5.0 Rohloff T, every ride becomes a relaxed work assignment. A low center of gravity and robust construction ensure smooth, stable handling – even when the transport box is fully loaded.
Riders benefit from a comfortable seating position and easy handling, while the installed Tektro Auriga brakes provide reliable stopping power in every situation. Whether for gastronomy, delivery services, or in-house logistics – this model makes everyday work noticeably easier.
Permissible total weight & legal use:
In Switzerland, the version with up to 250 kg gross weight may be ridden without a license from the age of 16.
In Germany, cargo e-bikes with pedal assistance up to 25 km/h are legally considered bicycles – they may be ridden without a license and by persons of any age, provided safe participation in road traffic is ensured.
Technology that thinks ahead
Agility meets load-bearing capacity
Powerful drive
Stable and durable
Plenty of space for materials or goods, minimal space needed in traffic
Bosch CargoLine CX
Built for daily continuous use, with a robust frame and low-maintenance components
Optional matching accessories
Technical data
Motor – Bosch Performance CX, 250 W nominal power, max. 85 Nm torque, up to 25 km/h
On-board computer – Bosch Intuvia, handlebar mount
Battery pack – Bosch 500 Wh / 13.4 Ah, removable
Range –
Charging time – approx. 4.5 hrs
Frame dimensions – 2270 × 850 × 1150 mm (L × W × H)
Transmission – 14-Gang Rohloff Speedhub
Front lighting – StVZO package (front + rear lights, reflectors)
Rear lighting – StVZO package (front + rear lights, reflectors)
Weight –
Fork – Cargo-optimized double-bridge suspension fork
Turning circle – 340 cm
Front brake – Tektro Auriga
Rear brake – Tektro Auriga
Electric walk assist – yes
Rigid seat post – up to 100 kg rider weight
Custom branding or logo – optionally available
Front wheel tire – Rim 26″, tire 26×2.15 Schwalbe Pick-Up
Rear wheel standard tire – Rim 20″
Permissible rider weight – depending on seat post: Safety level 4: 100 kg Safety level 6 (Ergotec Up&Down): 110 kg
Permissible total mass (gross weight) – 180 kg
See also our XCYC brochure: XCYC Brochure DE & XCYC Brochure EN
Compatible superstructure for XCYC LONGTAIL Rohloff T
Urban Delivery Superstructure
|  |
