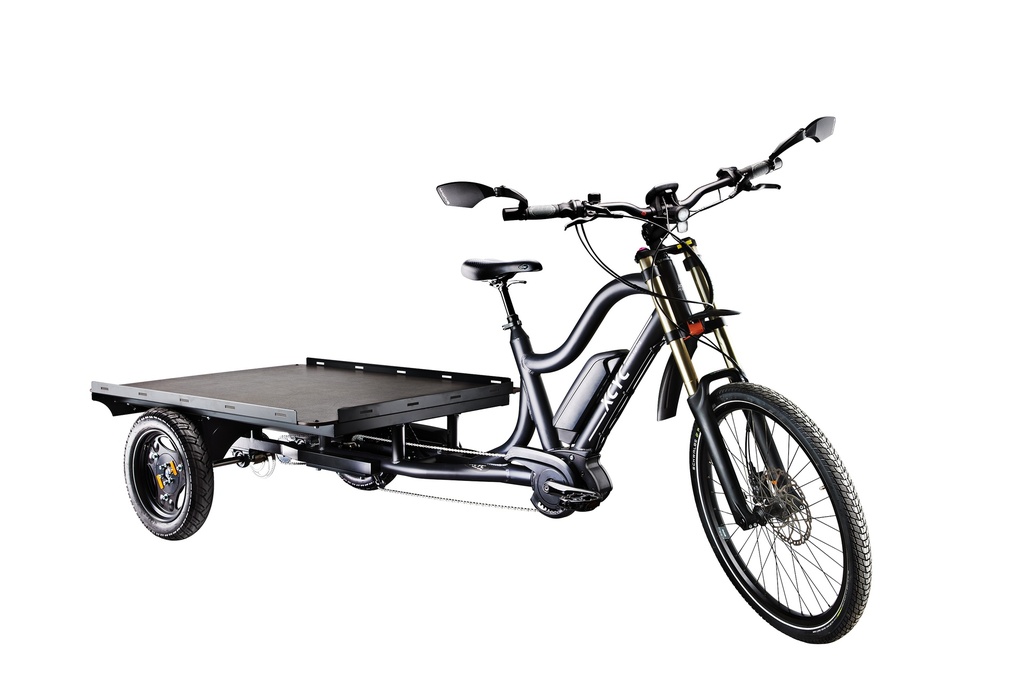

XCYC PICKUP Work 4.0
Work 4.0 standard equipment:
2900 x 1000 x 1700 mm (L x W x H)
Wheelbase 205 cm, turning circle 460 cm
Vehicle weight/ without body 100 kg
Loading area/load plate (screen printing plate) LA04/ Euro pallet standard "+" 99.4 x 130 cm (max. 120 cm body height)
Bosch Gen4, CargoLine CX (85 Nm) e-drive with PowerPack500
Bosch Intuvia display
Preparation for dual battery system
Rohloff Speedhub 14-speed hub gears
Cargo optimised double bridge suspension fork
Permissible total weight 300 kg
Sturdy rim rear wheels (12-inch)
Schwalbe Pick-Up front tyres (26-inch)
Lighting package (StVZO-compliant lighting package with reflector)
Standard paint finish in matt black
Structure:
ohne Aufbau
30 Tage Geld zurück Garantie
kostenloser Versand in Deutschland
Lieferung in 2 Tagen bei Verfügbarkeit
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Mobility that works together
Whether for municipal gardening, works services, caretaking or mobile repair services: the XCYC WORK is made for tasks where high load capacity, functional equipment and technical reliability are required. With a permissible total weight of up to 300 kg and a modular platform, it offers the necessary flexibility for a wide range of applications in public spaces and in the workplace.
The loading area can be designed to be open, closed or - depending on the body - tiltable. All components are designed for intensive use and are particularly low-maintenance.
With minimal Maintenance effort and maximum reliability, the XCYC Work contributes to the sustainability of your business and offers a future-proof answer to the demands of professional use.
Good to know:
In Switzerland, the version with a total weight of up to 250 kg can be ridden without a driving licence from the age of 16. For heavier models up to 450 kg, a category M driving licence is sufficient.In Germany, cargo e-bikes with assistance up to 25 km/h are legally considered bicycles - they can be ridden without a driving licence and by people of any age, as long as safe participation in road traffic is guaranteed.
Technology that impresses in use
300 kg permissible total weight
For heavy loads and large projects
Parking brake & low centre of gravity
Stable even when stationary
Modular design
With railing, box or tiltable load surface as required
Driving licence free
up to 250 kg total weight (CH)
Optional matching accessories
Technical data
- Motor - Bosch Gen4 250, Cargoline CX 250 Torque max. 85 Nm, rated power 250 watts with 25 km/h
- On-board computer - Bosch Intuvia, handlebar mounting

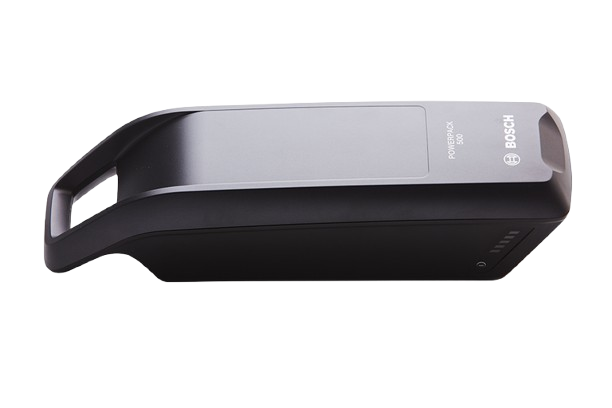

- Battery pack - Bosch 500 Wh / 13.4 Ah, removable
- Range - up to 50 km- Dual battery pack - a second battery can be connected for double the range
- Charging time - approx. 4.5 hrs.
- Frame - 2900 x 1000 x 1700 mm (L x W x H)
- Gearing depending on model - 10-speed Shimano Deore derailleur gears / 14-speed Rohloff Speedhub hub gears
- Front lighting - Lumotec IQ MycE, 50 Lux, 6-42 V DC
- Rear light - Trelock LS 614 DUO FLAT, signal, 6-12 V, DC
- Loading area - 940×1300 mm
- Weight - 100 kg- Fork - Cargo-optimised double bridge suspension fork
- Turning circle - 460 cm
- Front brake - Depending on model: Shimano-T6000-hydraulic - Disc brake, Ø brake disc 203 mm / Tektro HD-T-740 hydraulic disc brake, Ø brake disc 203 mm
- Rear brake - Depending on model: 2 x Shimano-T6000 hydraulic disc brake, Ø brake disc 180 mm / Tektro HD-T-745 2x hydraulic disc brake, Ø brake disc 180 mm
- Mechanical parking brake for additional safety when parking
- Electric motor push assist - yes

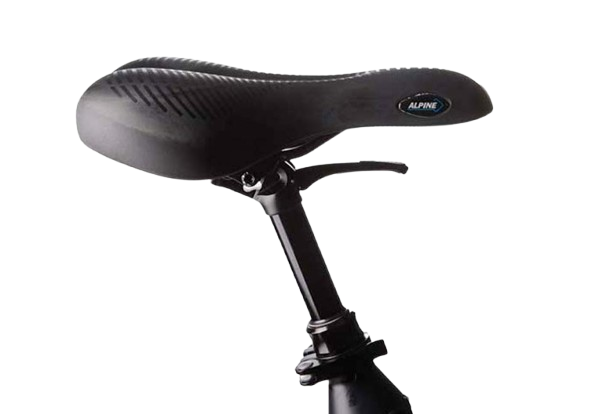

- Rigid seat post - up to 100 kg rider weight
- Custom branding or logo - Optionally available
- Front wheel tyres - Schwalbe Pick-Up 26×2.15
- Rear wheel tyres standard - Vee Rubber 094 12 x 3. 00
- Max. permissible rider weight - depending on the seat post Safety level 4:100kg Safety level 6 (Ergotec Up&Down):110kg
- Max. permissible payload on the loading area of the PICKUP - 150 kg
- Max. permissible total mass (permissible total weight) - 300 kg
- Max. permissible total mass (permissible total weight) in Switzerland - 200 kg
- Max. permissible loading height - 1.20 m- Permitted trailers - no
- StVZO equipment - yes
See also our XCYC brochure: XCYC Broschure GE & XCYC Brochure EN
Suitable superstructures for the XCYC WORK 4.0

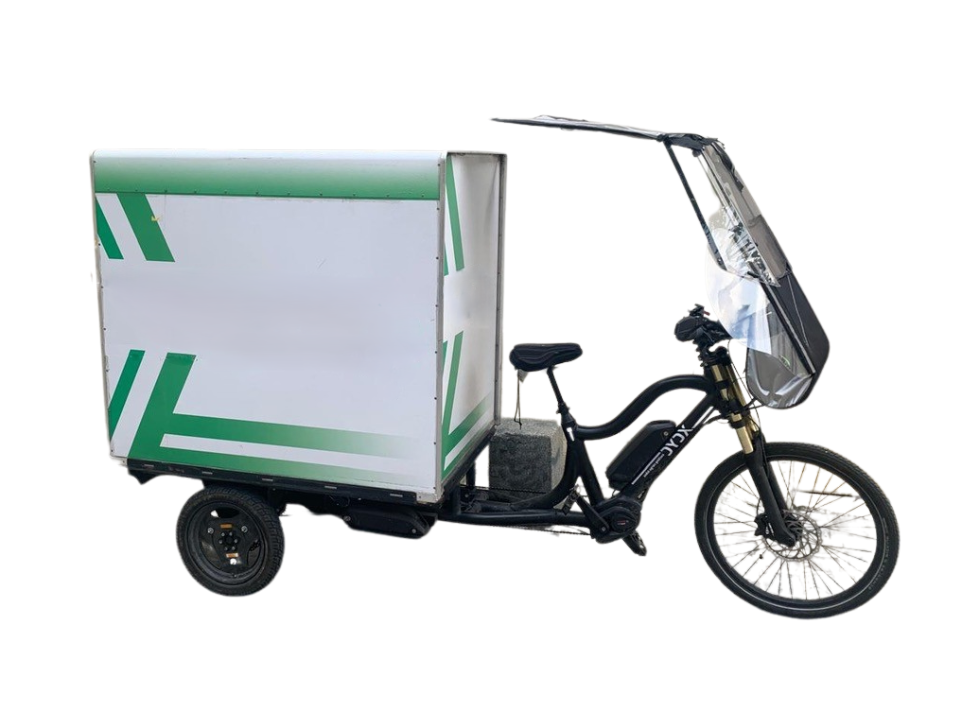

XCYC Work transport case Smart - 1.5 cubic metres
XCYC Work transport case Smart - 2 cubic metres
|  |
XCYC WORK Municipal superstructure
|  |
Tiltable loading platform
|  |
XCYC Work tarpaulin structure
|  |
XCYC Work aluminium transport case - 1.5 cubic metres
|  |
XCYC Work railing superstructure
Possible options that can be added to the superstructures: |  |
